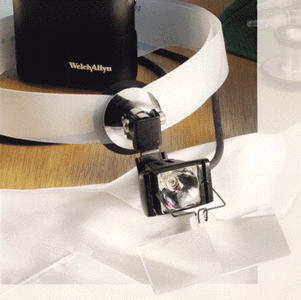

Diagnostic Instruments - Welch Allyn Flat Surface Magnifier

Illumination and Magnification in a Portable, Affordable Package

	20520S Welch Allyn Flat Surface Magnifier Spectacle Mount with Portable Power Source	$575.15
	20520H Welch Allyn Flat Surface Magnifier Headmount with Portable Power Source	$575.15

With the Welch Allyn Flat Surface Magnifier, you can enhance the success and efficiency of your examinations and procedures like never before. The Flat Surface Magnifier features a crystal clear magnifying lens that provides views at up to three times their original size. Combine that with a built-in halogen lamp and you have the illumination and magnification you need - and the hands-free useability you want.

CRYSTAL CLEAR, MAGNIFIED IMAGES

Welch Allyn's unique magnification lens provides you with clear, precise images at up to three times their actual size. This will allow you to perform procedures with greater accuracy, or make a determination of a patient's condition with more efficiency. What's more, the magnifier's relatively large depth- of-field allows you to operate at a comfortable working distance from you patient. When magnification isn't required, simply flip the lens out of your line of vision.

BRILLIANT HALOGEN ILLUMINATION - RIGHT WHERE YOU NEED IT

The Welch Allyn Flat Surface Magnifier is equipped with a powerful halogen lamp that shines bright, cool light directly on the desired area, providing you with the true tissue color rendition necessary for effective examinations and procedures. The Welch Allyn Flat Surface Magnifier is ideal for a number of

Suture insertions/removal
Taking biopsies
Pelvic examinations
Other situations requiring magnification and illumination

Welch Allyn Magnifier

SUPERIOR MAGNIFICATION FROM A PORTABLE INSTRUMENT

The Welch Allyn Flat Surface Magnifier comes in both head-band-mounted and spectacle-mounted models. What's more, the Flat Surface Magnifier is designed to go everywhere you go. Its clip-on battery pack provides 90 minutes of on-time from a 10 hour charge.

SPECIFICATIONS

Magnification: 2.0x's (3 Diopters)
Light Source: 3.60V, Halogen
Headband Adjustment Range: small/medium/large
Weight (20520S): 50 g
Transport and Storage: -20 degrees Celsius to 40 degrees Celsius
95% RH maximum

APPROVALS

UL 544, CAN/CSA C22.2 No. 125
IEC 601-1, IEC 601-1-2, CE
